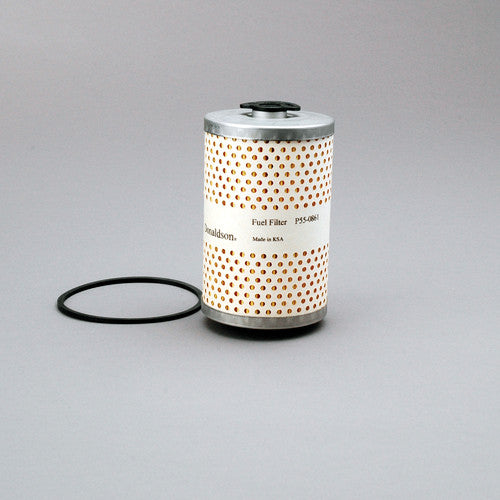

P550861 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

P550861 | Donaldson | OFS # 97-01-0895

  • $12.53


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.25 IN (82.55 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.47 IN (11.94 MM)

Inner Diameter, Bottom:

Length: 5.56 IN (141.22 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 5.20 LB (2.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
