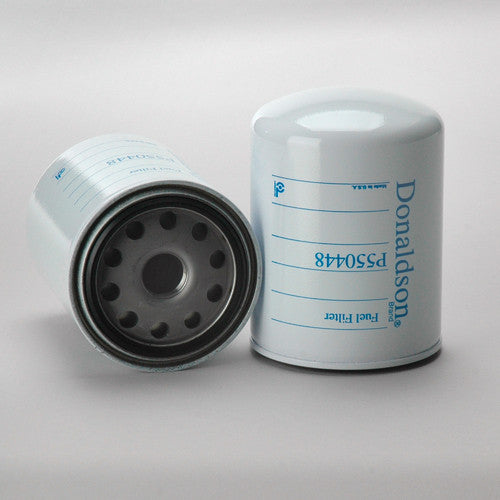

P550448 | DONALDSON | Fuel Filter Element
***Image may vary***

P550448 | Donaldson | Fuel Filter Element | OFS # 97-15-1731

  • $21.87


FUEL FILTER ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.29 IN (108.97 MM)

Outer Diameter, Bottom: 4.29 IN (108.97 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.10 IN (129.54 MM)

Thread: 1-14 UNS-2B



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 21.70 LB (9.84 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
