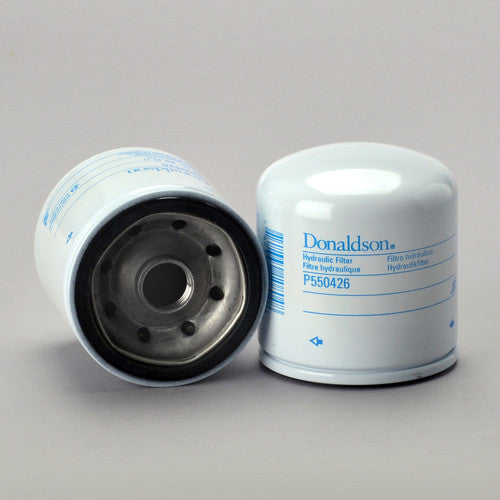

P550426 | DONALDSON | Spin-on Filter Element
***Image may vary***

P550426 | Donaldson | Spin-on Filter Element | OFS # 97-25-0653

  • $10.08


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 175 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES VOLVO (61724) PART NUMBER 834337-8



Dimensional Specifications
Outer Diameter, Top: 3.00 IN (76.20 MM)

Outer Diameter, Bottom: 3.00 IN (76.20 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 3.40 IN (86.36 MM)

Thread: 3/4"- 16 UNF



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
