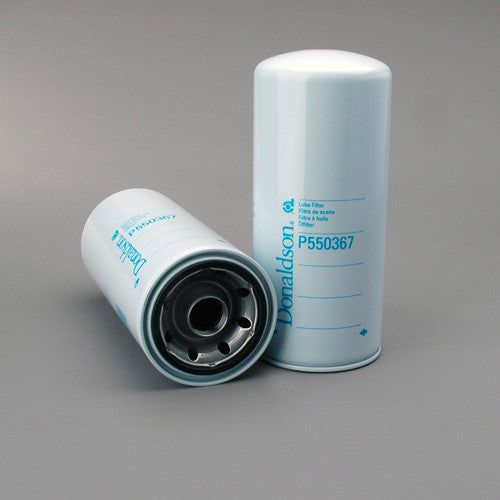

P550367 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

P550367 | Donaldson | OFS # 97-112496

  • $32.40

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating: N/A BPV 27.99

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.41 IN (137.41 MM)

Outer Diameter, Bottom: 5.41 IN (137.41 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 12.19 IN (309.63 MM)

Thread: M36 X 1.5

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL


Type of Media: PAPER

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 25.30 LB (11.48 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
