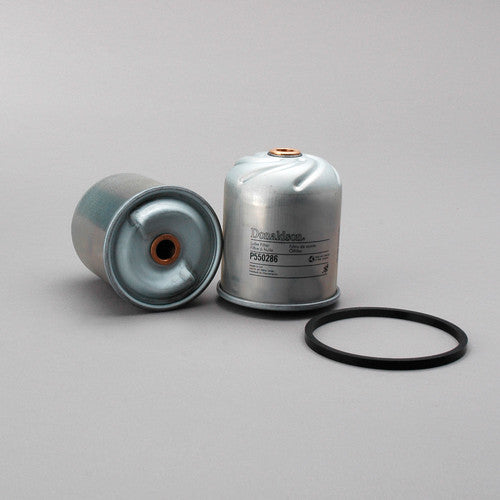

P550286 | DONALDSON | Spin-on Filter Element
***Image may vary***

P550286 | Donaldson | Spin-on Filter Element | OFS # 97-25-0490

  • $21.81


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.88 IN (98.55 MM)

Outer Diameter, Bottom: 3.88 IN (98.55 MM)

Inner Diameter, Top: 0.56 IN (14.22 MM)

Inner Diameter, Bottom:

Length: 4.56 IN (115.82 MM)

Thread:



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media:

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: NONE

Configuration:



Packaging Specifications
Number per Carton: 12

Carton Weight: 11.30 LB (5.13 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
