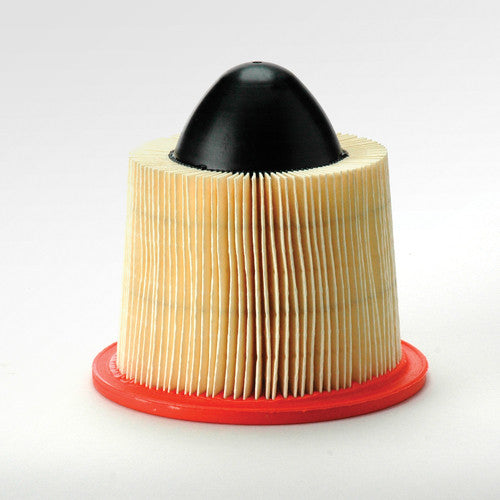

P546597 | DONALDSON | Air Intake Filter Element
***Image may vary***

P546597 | Donaldson | Air Intake Filter Element | OFS # 97-22-4254

  • $19.86


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 8.13 IN (206.50 MM)

Outer Diameter, Bottom: 8.13 IN (206.50 MM)

Inner Diameter, Top: 4.25 IN (107.95 MM)

Inner Diameter, Bottom:

Length: 7.81 IN (198.37 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 6

Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
