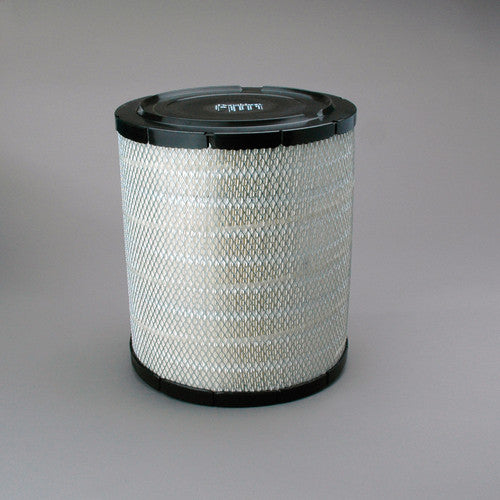

P542345 | DONALDSON | Intake Air Filter Element
***Image may vary***

P542345 | Donaldson | OFS # 97-22-1621

  • $81.50


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 13.13 IN (333.50 MM)

Outer Diameter, Bottom: 12.90 IN (327.66 MM)

Inner Diameter, Top: 6.80 IN (172.72 MM)

Inner Diameter, Bottom:

Length: 15.40 IN (391.16 MM)

Thread: NONE



Physical Specifications
Handle: YES

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 8.10 LB (3.67 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
