P531065 | Donaldson | OFS # 97-22-0504
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 300 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.38 IN (111.25 MM)
Outer Diameter, Bottom: 4.38 IN (111.25 MM)
Inner Diameter, Top: 3.00 IN (76.20 MM)
Inner Diameter, Bottom: 3.00 IN (76.20 MM)
Length: 4.75 IN (120.65 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: MOLDED
Type of Adhesive: N/A
Type of Endcap: MOLDED
Center Tube: STEEL
Type of Media: PAPER
Filter Area: 0.9 SQ.IN.
Plating: N/A
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

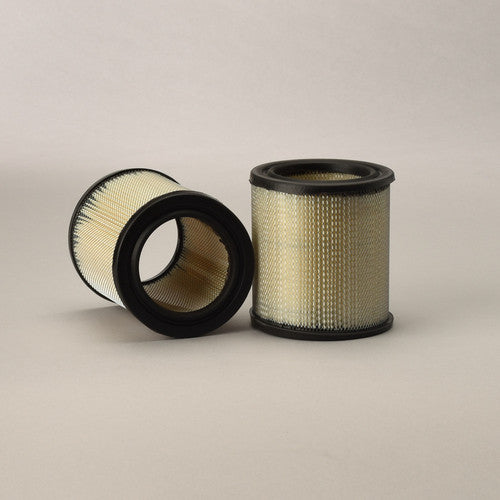

Intake Air Filter Element
