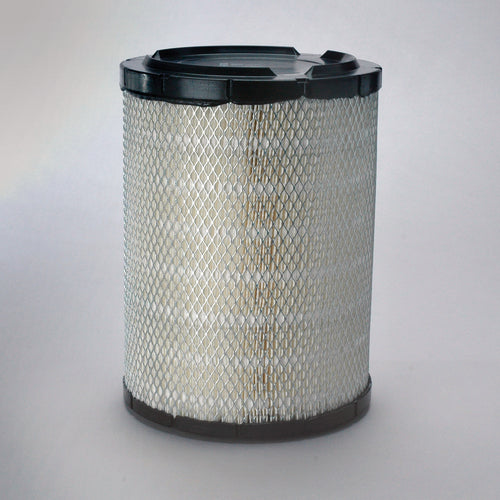

P527484 | Donaldson | OFS # 97-28-1711

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  N/A

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  9.32 IN   (236.73 MM)

Outer Diameter, Bottom:  9.32 IN   (236.73 MM)

Inner Diameter, Top:  5.22 IN   (132.59 MM)

Inner Diameter, Bottom:

Length:  12.80 IN   (325.12 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:  N/A

Type of Endcap:  MOLDED PLASTISOL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  N/A

Plating:  N/A

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  4.10 LB   (1.86 KG)
