P524390 | Donaldson | OFS # 97-22-0611
Performance Data
Micron Rating: 10.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 300 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 8.00 IN (203.20 MM)
Outer Diameter, Bottom: 8.00 IN (203.20 MM)
Inner Diameter, Top: 6.50 IN (165.10 MM)
Inner Diameter, Bottom: 6.50 IN (165.10 MM)
Length: 3.02 IN (76.71 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: MOLDED
Type of Adhesive: PLASTISOL
Type of Endcap: PLASTISOL
Center Tube: WIRE MESH
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: N/A
Outer Jacket: YES - METAL
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 5.60 LB (2.54 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

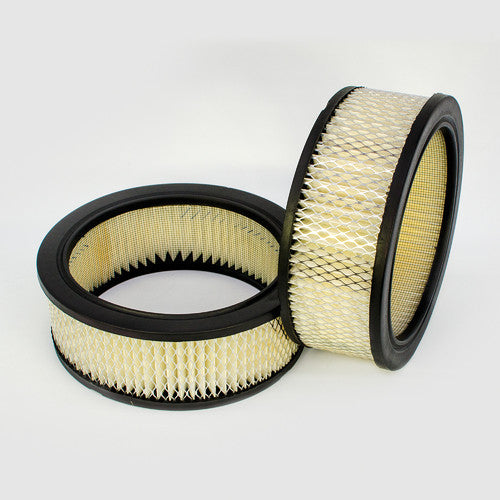

Intake Air Filter Element
