P524347 | Donaldson | OFS # 97-22-0664
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 175 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 9.76 IN (247.90 MM)
Outer Diameter, Bottom: 9.76 IN (247.90 MM)
Inner Diameter, Top: 7.94 IN (201.68 MM)
Inner Diameter, Bottom: 7.94 IN (201.68 MM)
Length: 2.27 IN (57.66 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: MOLDED
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.60 LB (2.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

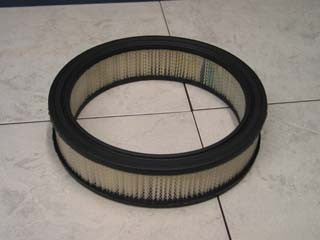

Intake Air Filter Element
