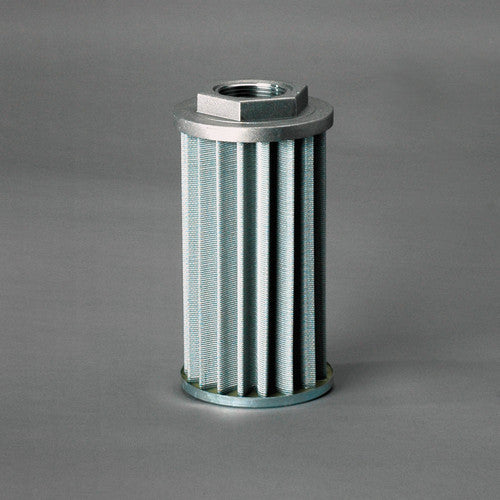

P171877 | Donaldson | Pleated Wire Element | OFS # 97-35-3692

PLEATED WIRE ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 125.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 248 F

Direction of Flow:

Dimensional Specifications
Outer Diameter, Top: 2.76 IN (70.10 MM)

Outer Diameter, Bottom: 2.76 IN (70.10 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.87 IN (149.10 MM)

Thread: 1" BSP

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: NYLON END CAP

Center Tube:

Type of Media: WIRE MESH

Filter Area:

Plating:

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
