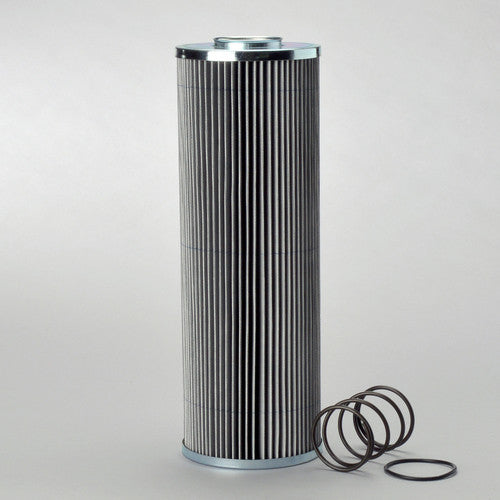

P171579 | DONALDSON | HYDRAULIC FILTER CARTRIDGE | OFS # 97-33-5816

Performance Data
Micron Rating:  10.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  200 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  5.12 IN   (130.05 MM)

Outer Diameter, Bottom:  5.12 IN   (130.05 MM)

Inner Diameter, Top:  2.56 IN   (65.02 MM)

Inner Diameter, Bottom:

Length:  15.75 IN   (400.05 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-A

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  FIBERGLASS

Filter Area:  1,483 SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:

• Cross References Donaldson

• P171578 HYDRAULIC FILTER, CARTRIDGE Wire Mesh 90 µm βₓ(c) = 2
• P171583 HYDRAULIC FILTER, CARTRIDGE Wire Mesh 60 µm βₓ(c) = 2
• P171582 HYDRAULIC FILTER, CARTRIDGE Cellulose 27 µm βₓ(c) = 2
• P171581 HYDRAULIC FILTER, CARTRIDGE Cellulose 7 µm βₓ(c) = 2
• P171580 HYDRAULIC FILTER, CARTRIDGE Synteq 23 µm βₓ(c) = 1000
• P176749 HYDRAULIC FILTER, CARTRIDGE Synteq 6 µm βₓ(c) = 1000
• ( Click On Any OEM Number For Donaldson Cross Reference Lookup Tool)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
