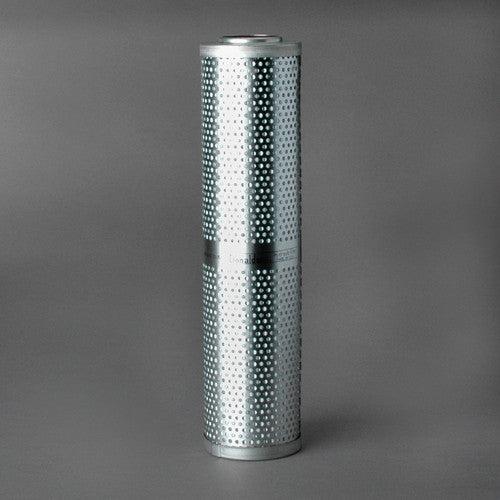

P166255 | DONALDSON | Pleated Microglass Filter Element
***Image may vary***

P166255 | Donaldson | OFS # 97-05-0582

  • $91.92

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.16 IN (80.26 MM)

Outer Diameter, Bottom: 3.16 IN (80.26 MM)

Inner Diameter, Top: 1.72 IN (43.69 MM)

Inner Diameter, Bottom: 1.72 IN (43.69 MM)

Length: 12.97 IN (329.44 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL


Type of Media: MICROGLASS

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.80 LB (1.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
