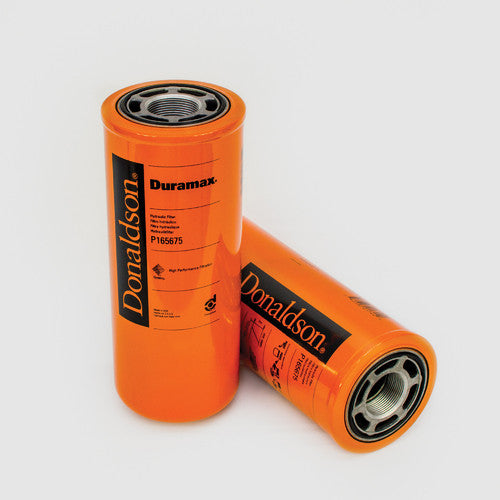

P165675 | DONALDSON | Spin-on Filter Element
***Image may vary***

P165675 | Donaldson | Spin-on Filter Element | OFS # 97-25-0318

  • $110.02

Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.82 IN (122.43 MM)

Outer Diameter, Bottom: 4.82 IN (122.43 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 11.59 IN (294.39 MM)

Thread: 1 3/4-12

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.70 LB (2.13 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
