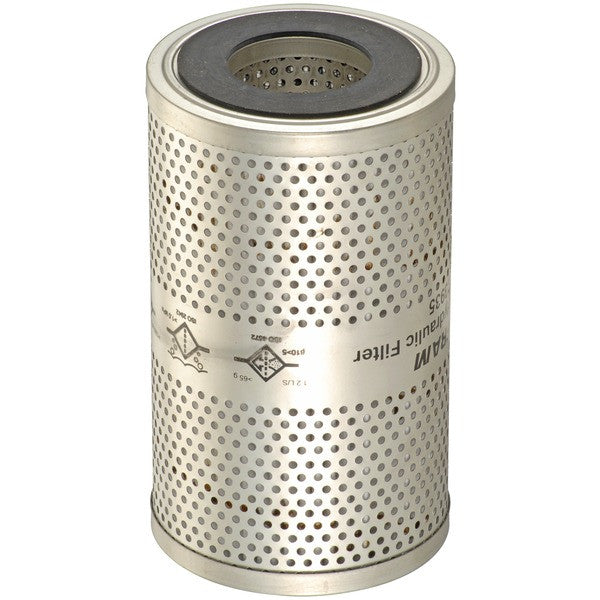

P165622 | DONALDSON | Pleated Microglass Filter Element
***Image may vary***

P165622 | Donaldson | OFS # 97-01-0955

  • $42.12


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.63 IN (117.60 MM)

Outer Diameter, Bottom: 4.63 IN (117.60 MM)

Inner Diameter, Top: 2.19 IN (55.63 MM)

Inner Diameter, Bottom: 2.19 IN (55.63 MM)

Length: 8.00 IN (203.20 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 30.00 LB (13.61 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
