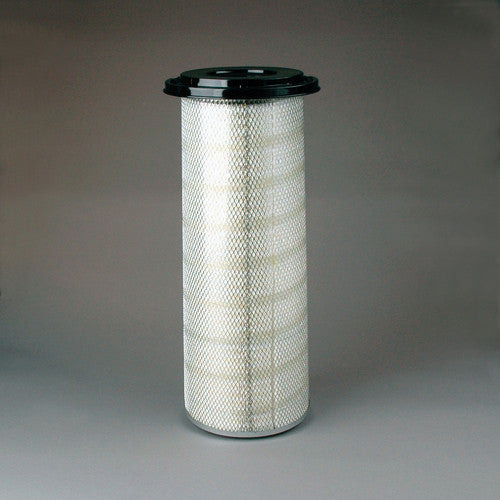

P150695 | DONALDSON | Intake Air Filter Element
***Image may vary***

P150695 | Donaldson | OFS # 97-22-0989

  • $70.56


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: CFM RATING: 1387.93



Dimensional Specifications
Outer Diameter, Top: 11.60 IN (294.64 MM)

Outer Diameter, Bottom: 10.63 IN (270.00 MM)

Inner Diameter, Top: 6.69 IN (169.93 MM)

Inner Diameter, Bottom:

Length: 28.53 IN (724.66 MM)

Thread:



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: N/A

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 12.10 LB (5.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
