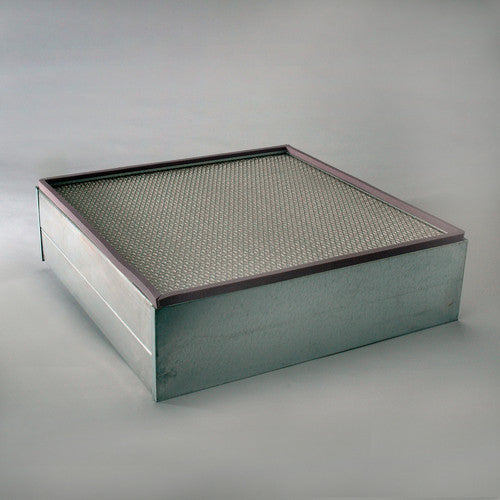

P146555 | DONALDSON | Panel Air Filter Element
***Image may vary***

P146555 | Donaldson | OFS # 97-22-1369

  • $89.01


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N.A.

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES DONALDSON PART NO. P14-6555



Dimensional Specifications
Outer Diameter, Top: 19.25 IN (488.95 MM)

Outer Diameter, Bottom: 19.25 IN (488.95 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 19.38 IN (492.25 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: GALVANIZED STEEL

Center Tube: NONE

Type of Media: PAPER

Filter Area: 71 SQ.FT.

Plating: GALVANIZED

Outer Jacket: YES

Configuration: N/A



Packaging Specifications
Number per Carton: 1

Carton Weight: 13.00 LB (5.90 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
