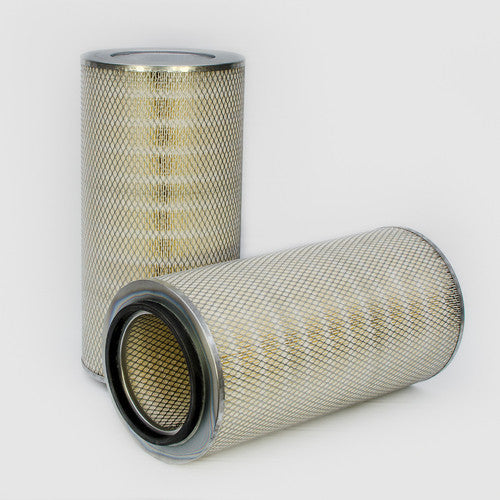

P145505 | DONALDSON | Intake Air Filter Element
***Image may vary***

P145505 | Donaldson | OFS # 97-22-0997

  • $79.31


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 9.14 IN (232.16 MM)

Outer Diameter, Bottom: 9.14 IN (232.16 MM)

Inner Diameter, Top: 0.90 IN (22.86 MM)

Inner Diameter, Bottom: 5.87 IN (149.10 MM)

Length: 18.48 IN (469.39 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - METAL

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.00 LB (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
