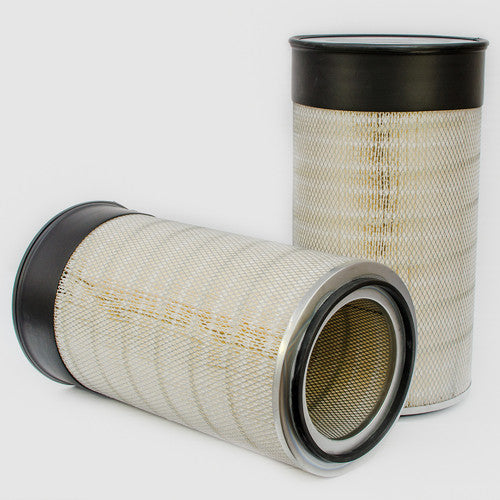

P132602 | DONALDSON | Intake Air Filter Element
***Image may vary***

P132602 | Donaldson | OFS # 97-22-0607

  • $210.00


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 13.13 IN (333.50 MM)

Outer Diameter, Bottom: 12.78 IN (324.61 MM)

Inner Diameter, Top: 0.94 IN (23.88 MM)

Inner Diameter, Bottom: 8.56 IN (217.42 MM)

Length: 24.38 IN (619.25 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 12.80 LB (5.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
