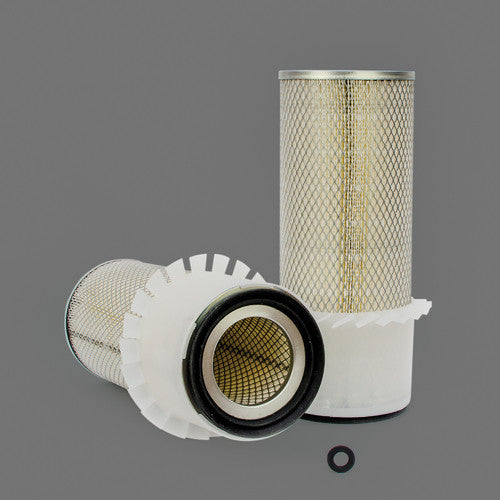

P122073 | DONALDSON | Intake Air Filter Element
***Image may vary***

P122073 | Donaldson | OFS # 97-22-0501

  • $45.06


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 6.09 IN (154.69 MM)

Outer Diameter, Bottom: 7.81 IN (198.37 MM)

Inner Diameter, Top: 0.75 IN (19.05 MM)

Inner Diameter, Bottom: 3.50 IN (88.90 MM)

Length: 15.50 IN (393.70 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.00 LB (1.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
