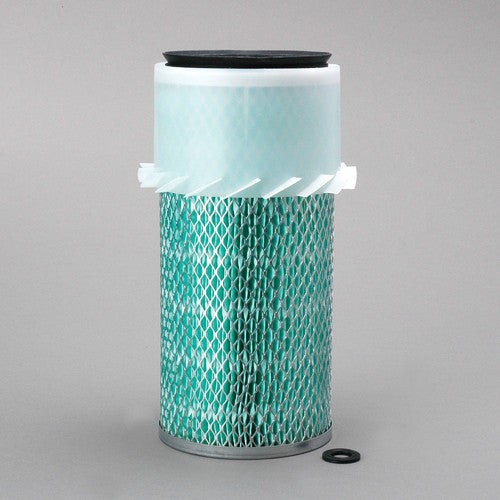

P119007 | DONALDSON | Intake Air Filter Element
***Image may vary***

P119007 | Donaldson | OFS # 97-22-0393

  • $25.42


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: ELEMENT HAS FINS LOCATED TOWARDS OPEN END.



Dimensional Specifications
Outer Diameter, Top: 5.19 IN (131.83 MM)

Outer Diameter, Bottom: 6.38 IN (162.05 MM)

Inner Diameter, Top: 2.63 IN (66.80 MM)

Inner Diameter, Bottom: 0.66 IN (16.76 MM)

Length: 11.50 IN (292.10 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE W/ BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
