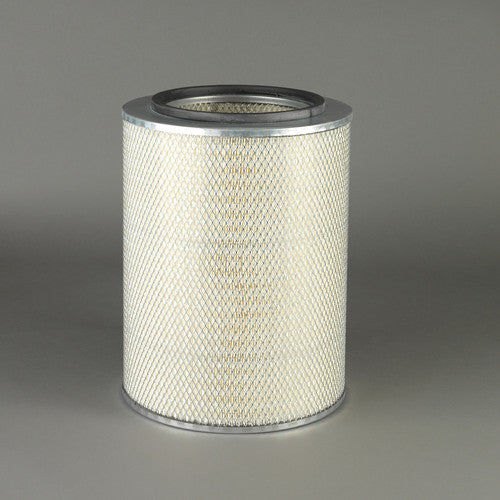

P117580 | DONALDSON | Intake Air Filter Element
***Image may vary***

P117580 | Donaldson | OFS # 97-22-0438

  • $78.02


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 12.08 IN (306.83 MM)

Outer Diameter, Bottom: 12.08 IN (306.83 MM)

Inner Diameter, Top: 7.73 IN (196.34 MM)

Inner Diameter, Bottom: 0.90 IN (22.86 MM)

Length: 16.51 IN (419.35 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 8.40 LB (3.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
