P116446 | Donaldson | OFS # 97-22-0679
Performance Data
Micron Rating: 22.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 8.25 IN (209.55 MM)
Outer Diameter, Bottom: 8.25 IN (209.55 MM)
Inner Diameter, Top: 0.91 IN (23.11 MM)
Inner Diameter, Bottom: 7.11 IN (180.59 MM)
Length: 22.38 IN (568.45 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: 3580 SQ. IN.
Plating: N/A
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 5.00 LB (2.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

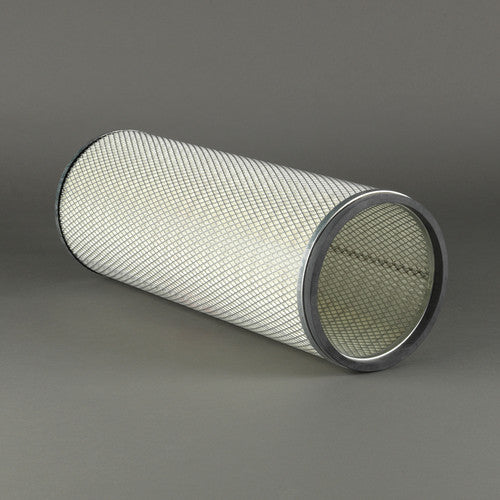

Intake Air Filter Element
