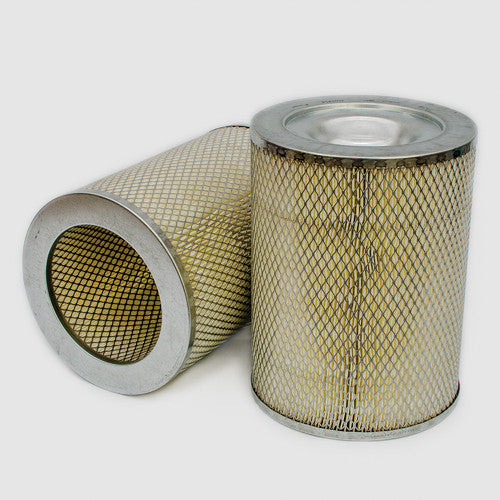

P106271 | DONALDSON | Intake Air Filter Element
***Image may vary***

P106271 | Donaldson | OFS # 97-22-0410

  • $37.31


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 225 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 8.25 IN (209.55 MM)

Outer Diameter, Bottom: 8.25 IN (209.55 MM)

Inner Diameter, Top: 0.50 IN (12.70 MM)

Inner Diameter, Bottom: 5.75 IN (146.05 MM)

Length: 11.00 IN (279.40 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.30 LB (1.95 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
