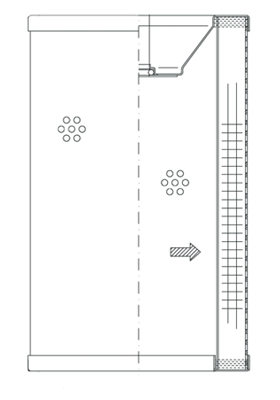

Main Filter Grou | MF0063771 | Filter Element | OFS # 97-33-1196

PLEASE CALL

Performance Data
Micron Rating:  10.00 ABSOLUTE

Beta Rating:  B10 = 200

Collapse Pressure Rating:

Maximum Temperature:  248 F

Direction of Flow:  INSIDE->OUT

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  7.95 IN   (201.93 MM)

Outer Diameter, Bottom:  7.95 IN   (201.93 MM)

Inner Diameter, Top:  0.56 IN   (14.22 MM)

Inner Diameter, Bottom:  6.18 IN   (156.97 MM)

Length:  32.48 IN   (824.99 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  NITRILE

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  5701 SQ.IN.

Plating:

Outer Jacket:  YES - PREF.

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
