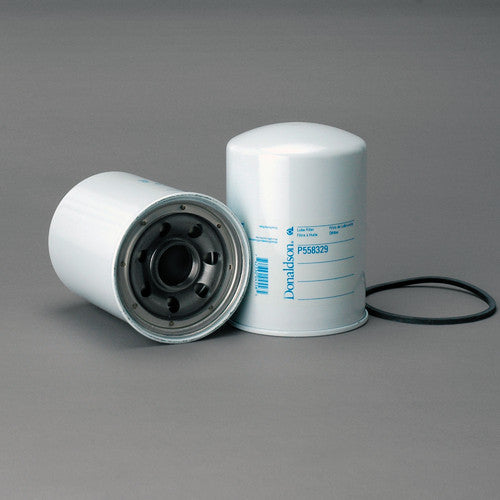

LFP558329 | DONALDSON | Spin-on Filter Element
***Image may vary***

LFP558329 | Donaldson | Spin-on Filter Element | OFS # 97-25-0569

  • $19.49


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 5.08 IN (129.03 MM)

Outer Diameter, Bottom: 5.08 IN (129.03 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 6.69 IN (169.93 MM)

Thread: 1 1/2-12



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 6

Carton Weight: 15.80 LB (7.17 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
