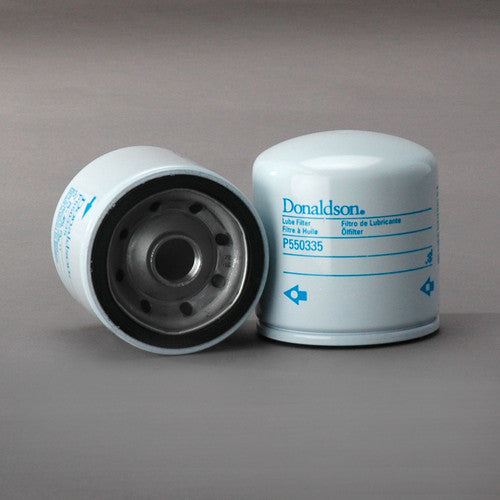

LFP550335 | DONALDSON | Spin-on Filter Element
***Image may vary***

LFP550335 | Donaldson | Spin-on Filter Element | OFS # 97-25-0533

  • $10.96


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 18.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 200 PSI

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.00 IN (76.20 MM)

Outer Diameter, Bottom: 3.00 IN (76.20 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 3.53 IN (89.66 MM)

Thread: 3/4"-16



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 163.6 SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 4.20 LB (1.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
