LAF1786 - CHAMPION   - Online Filter Supply Replacement Part # 97-22-0748

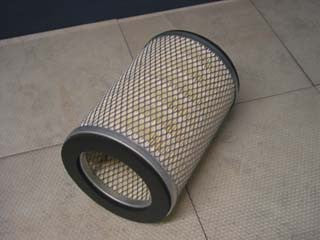

***Image may vary***

LAF1786 - CHAMPION - OFS # 97-22-0748

  • $20.90

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.83 IN (173.48 MM)

Outer Diameter, Bottom: 6.83 IN (173.48 MM)

Inner Diameter, Top: 4.23 IN (107.44 MM)

Inner Diameter, Bottom: 4.23 IN (107.44 MM)

Length: 9.52 IN (241.81 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL


Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.10 LB (0.95 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
