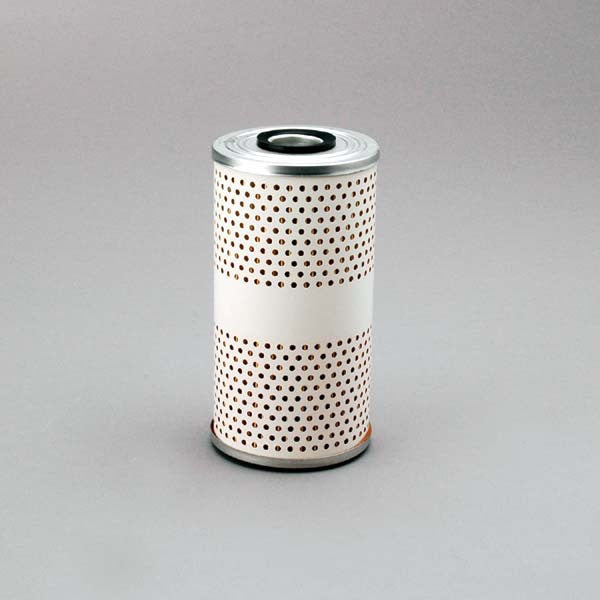

L4114F/1722817 | Champion | Sock Type, Fuel Elememt
***Image may vary***

L4114F/1722817 | Champion | Sock Type, Fuel Elememt | OFS # 97-10-0105

  • $8.77

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  25 PSID

Dimensional Specifications
Outer Diameter, Top:  3.31 IN   (84.07 MM)

Outer Diameter, Bottom:  3.35 IN   (85.09 MM)

Inner Diameter, Top:  1.06 IN   (26.92 MM)

Inner Diameter, Bottom:  1.06 IN   (26.92 MM)

Length:  6.50 IN   (165.10 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  COTTON

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  12.00 LB   (5.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
