KYX005430 | Donaldson | OFS # 97-22-0511
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 10.40 IN (264.16 MM)
Outer Diameter, Bottom: 7.49 IN (190.25 MM)
Inner Diameter, Top: 6.95 IN (176.53 MM)
Inner Diameter, Bottom: 6.95 IN (176.53 MM)
Length: 28.90 IN (734.06 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 8.50 LB (3.86 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

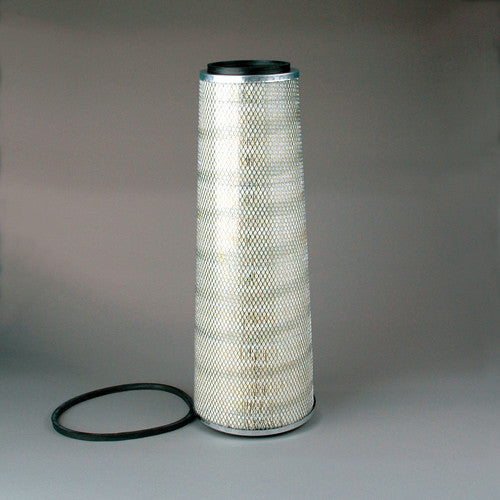

Intake Air Filter Element
