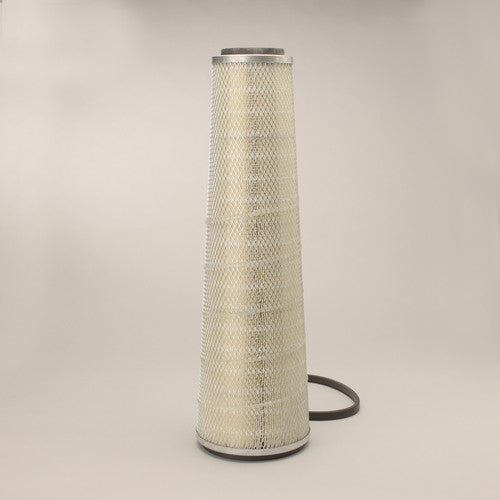

KYX005251 | DONALDSON | Intake Air Filter Element
***Image may vary***

KYX005251 | Donaldson | OFS # 97-22-0838

  • $88.97


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 175 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 5.75 IN (146.05 MM)

Outer Diameter, Bottom: 8.69 IN (220.73 MM)

Inner Diameter, Top: 0.18 IN (4.57 MM)

Inner Diameter, Bottom: 5.20 IN (132.08 MM)

Length: 29.00 IN (736.60 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.20 LB (2.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
