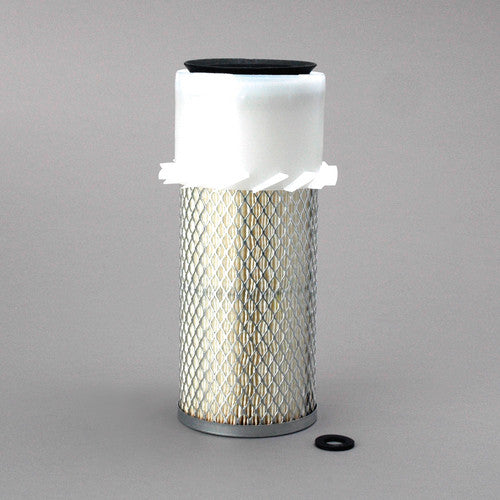

KAX000510 | DONALDSON | Intake Air Filter Element
***Image may vary***

KAX000510 | Donaldson | OFS # 97-22-1124

  • $29.79


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 5.16 IN (131.06 MM)

Outer Diameter, Bottom: 4.08 IN (103.63 MM)

Inner Diameter, Top: 2.56 IN (65.02 MM)

Inner Diameter, Bottom: 0.67 IN (17.02 MM)

Length: 10.43 IN (264.92 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE/BOLT/FIN



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
