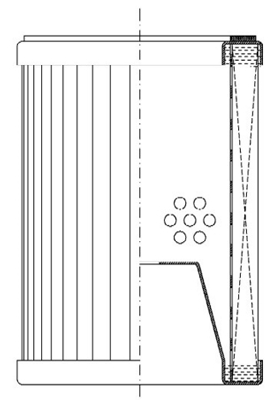

Schupp | HY9537 | Filter Element | OFS # 97-32-0435

PLEASE CALL

Performance Data
Micron Rating:  170.00

Beta Rating:

Collapse Pressure Rating:  145 PSID

Maximum Temperature:  248 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.46 IN   (62.48 MM)

Outer Diameter, Bottom:  2.46 IN   (62.48 MM)

Inner Diameter, Top:  1.65 IN   (41.91 MM)

Inner Diameter, Bottom:  0.39 IN   (9.91 MM)

Length:  3.48 IN   (88.39 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  STAINLESS MESH

Filter Area:  95 SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE W/BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
