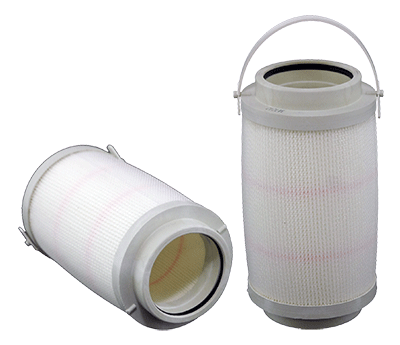

HPTRX2CL8-10MB | Hy-Pro | OFS # 97-40-0168

3-4 week lead time

Performance Data
Micron Rating:  10.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  248 F

Direction of Flow:  OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top:  3.82 IN   (97.03 MM)

Outer Diameter, Bottom:  3.82 IN   (97.03 MM)

Inner Diameter, Top:  2.52 IN   (64.01 MM)

Inner Diameter, Bottom:  2.52 IN   (64.01 MM)

Length:  6.02 IN   (152.91 MM)

Thread:

Physical Specifications
Handle:  YES

Seal Material:  VITON

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media:  MICROGLASS

Filter Area:  95 SQ IN

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
