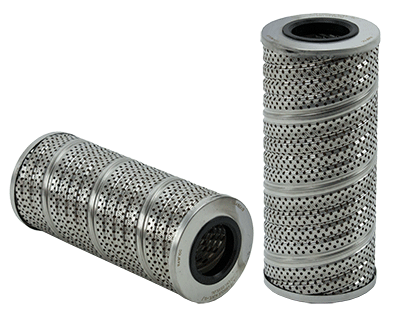

Hy-Pro | HPK-L9-12CB | Hydraulic Element | OFS # 97-28-0274
Performance Data
Micron Rating: 10.00
Beta Rating:
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.87 IN (98.30 MM)
Outer Diameter, Bottom: 3.87 IN (98.30 MM)
Inner Diameter, Top: 1.60 IN (40.64 MM)
Inner Diameter, Bottom: 1.60 IN (40.64 MM)
Length: 9.33 IN (236.98 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: CORROSION RESISTANT STEEL
Center Tube: CORROSION RESISTANT STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 5.00 LB (2.27 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
