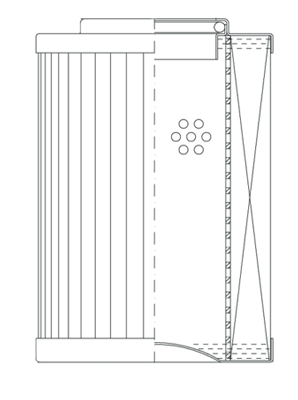

Hy-Pro | HP32NL17-10MB | Pleated Microglass Element | OFS # 97-05-2211

PLEATED MICROGLASS ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  10.00 ABSOLUTE

Beta Rating:  B25=200

Collapse Pressure Rating:  450 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top:  3.10 IN   (78.74 MM)

Outer Diameter, Bottom:  3.09 IN   (78.49 MM)

Inner Diameter, Top:  1.60 IN   (40.64 MM)

Inner Diameter, Bottom:

Length:  15.75 IN   (400.05 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  CORROSION RESISTANT STEEL

Center Tube:  CORROSION RESISTANT STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
