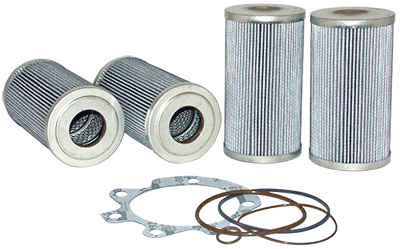

Hastings | HF968 | Allison Transmission Kit | OFS # 97-05-1627

Performance Data
Micron Rating:  0.00 ABSOLUTE

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Dimensional Specifications
Outer Diameter, Top:  3.00 IN   (76.20 MM)

Outer Diameter, Bottom:  3.00 IN   (76.20 MM)

Inner Diameter, Top:  1.53 IN   (38.86 MM)

Inner Diameter, Bottom:

Length:  5.90 IN   (149.86 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ELECTOTIN PLATED

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
