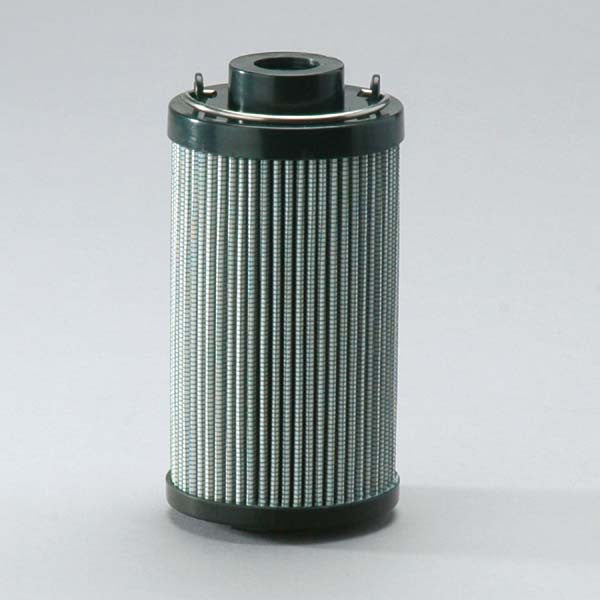

HC2218FAP4H | Pall Hydraulic | Return Line Element | OFS # 97-05-0364

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  3.00 ABSOLUTE

Beta Rating:  B3=200

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Dimensional Specifications
Outer Diameter, Top:  2.81 IN   (71.37 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  1.38 IN   (35.05 MM)

Inner Diameter, Bottom:

Length:  5.63 IN   (143.00 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  VITON

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
