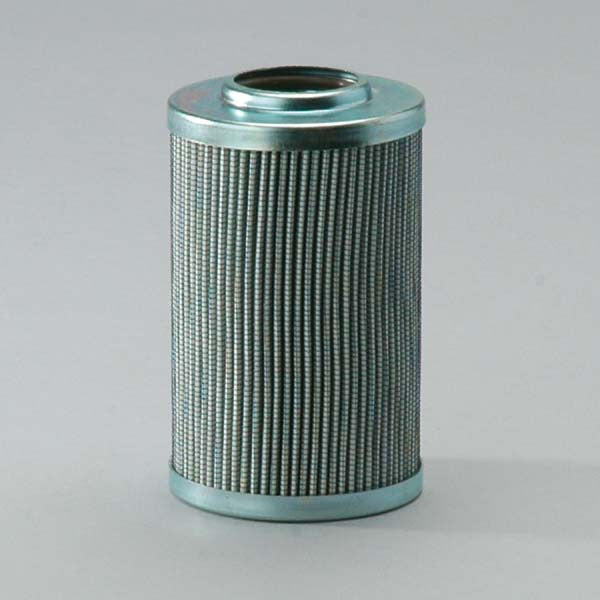

HC2216FUN14H | Pall Hydraulic | Pleated Microglass Element | OFS # 97-05-1072

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  5.00 ABSOLUTE

Beta Rating:  B6=200

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Dimensional Specifications
Outer Diameter, Top:  2.69 IN   (68.33 MM)

Outer Diameter, Bottom:  2.69 IN   (68.33 MM)

Inner Diameter, Top:  1.44 IN   (36.58 MM)

Inner Diameter, Bottom:

Length:  14.00 IN   (355.60 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  YES

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
