FWG042504 | Donaldson | OFS # 97-22-0653
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: FINS ON ONE END
Dimensional Specifications
Outer Diameter, Top: 4.17 IN (105.92 MM)
Outer Diameter, Bottom: 3.27 IN (83.06 MM)
Inner Diameter, Top: 1.79 IN (45.47 MM)
Inner Diameter, Bottom: 0.41 IN (10.41 MM)
Length: 7.36 IN (186.94 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: GALVANIZED
Outer Jacket: YES - METAL
Configuration: SINGLE/FIN/BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 0.80 LB (0.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

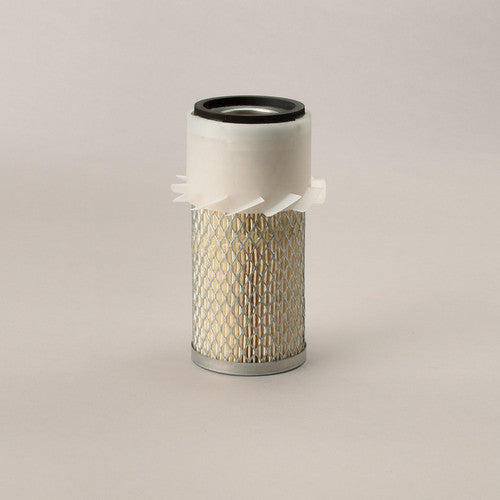

Intake Air Filter Element
