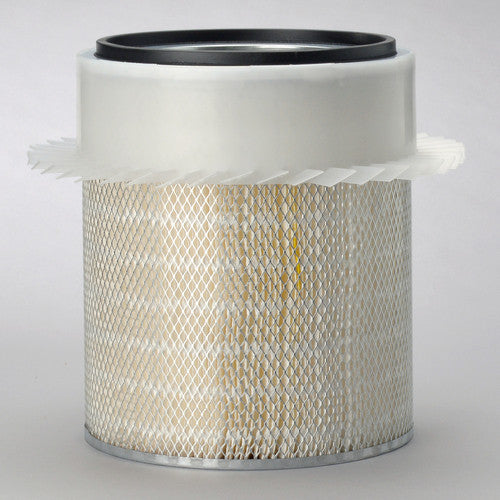

FWA160069 | Donaldson | W/Fin | OFS # 97-22-0515
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 15.50 IN (393.70 MM)
Outer Diameter, Bottom: 12.09 IN (307.09 MM)
Inner Diameter, Top: 0.53 IN (13.46 MM)
Inner Diameter, Bottom: 7.72 IN (196.09 MM)
Length: 14.50 IN (368.30 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: 10670.85 SQ.IN
Plating: N/A
Outer Jacket: YES - METAL
Configuration: SINGLE W/ BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 10.00 LB (4.54 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
