FF109 | FLEETGUARD | OFS # 97-10-0022

2 WEEK LEAD TIME

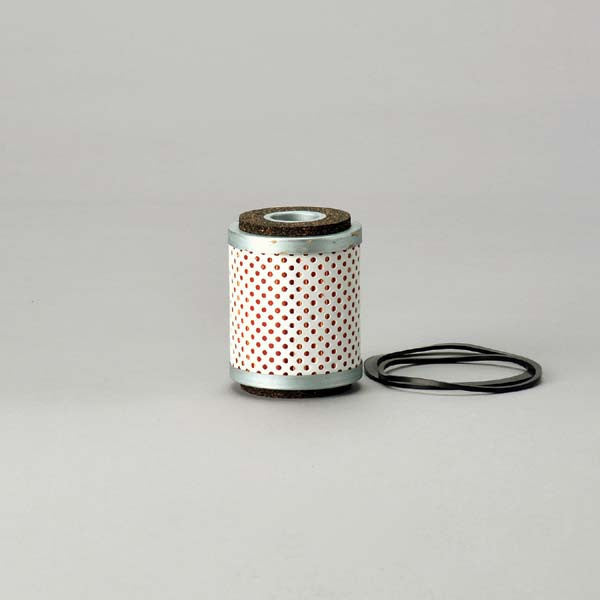

Fuel Element

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  25 PSID

Dimensional Specifications
Outer Diameter, Top:  3.00 IN   (76.20 MM)

Outer Diameter, Bottom:  3.00 IN   (76.20 MM)

Inner Diameter, Top:  1.06 IN   (26.92 MM)

Inner Diameter, Bottom:  1.06 IN   (26.92 MM)

Length:  3.63 IN   (92.20 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  0.40 LB   (0.18 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
