FA479 | Lockheed | OFS # 97-22-0625

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  NOT RATED

Maximum Temperature:  300 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  6.63 IN   (168.40 MM)

Outer Diameter, Bottom:  6.63 IN   (168.40 MM)

Inner Diameter, Top:  4.25 IN   (107.95 MM)

Inner Diameter, Bottom:  0.25 IN   (6.35 MM)

Length:  7.88 IN   (200.15 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  NONE

Type of Adhesive:  POLYVINYLCHLORIDE

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  N/A

Outer Jacket:  YES - METAL

Configuration:  SINGLE W/BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.10 LB   (0.95 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

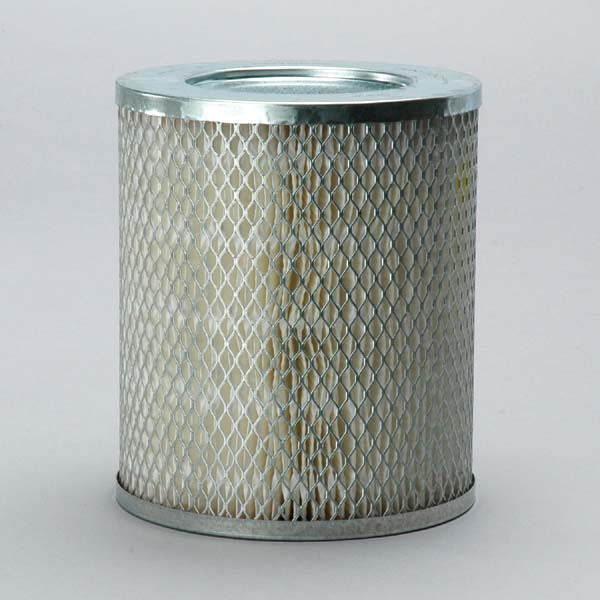

Intake Air Filter Element
