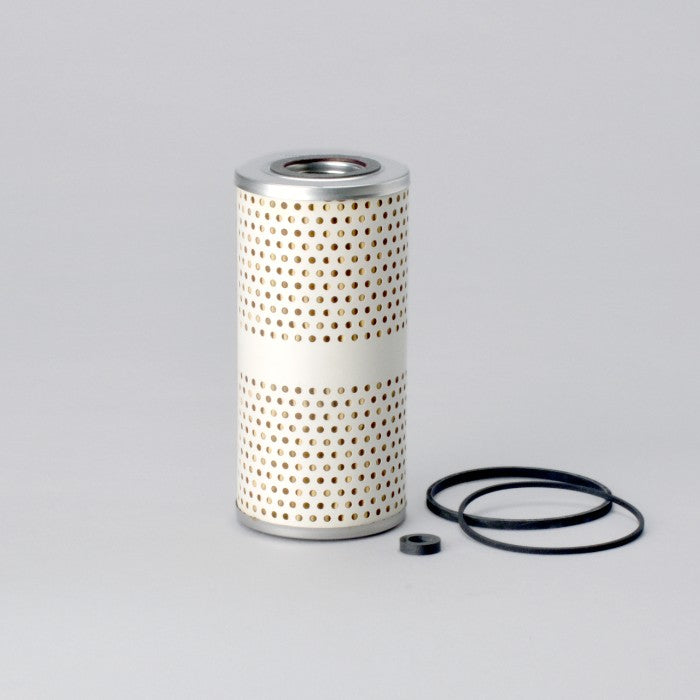

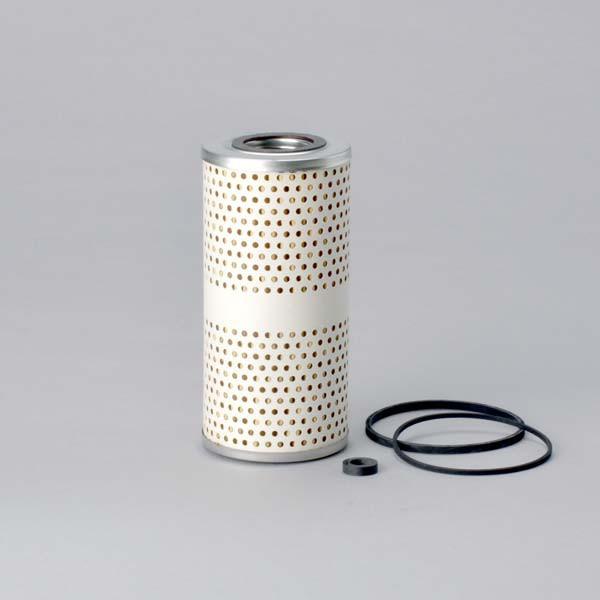

EIADKN6731A | Ford | Pleated Paper Element | OFS # 97-01-0938

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.94 IN   (74.68 MM)

Outer Diameter, Bottom:  2.94 IN   (74.68 MM)

Inner Diameter, Top:  1.25 IN   (31.75 MM)

Inner Diameter, Bottom:  1.25 IN   (31.75 MM)

Length:  5.50 IN   (139.70 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight:  4.90 LB   (2.22 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
