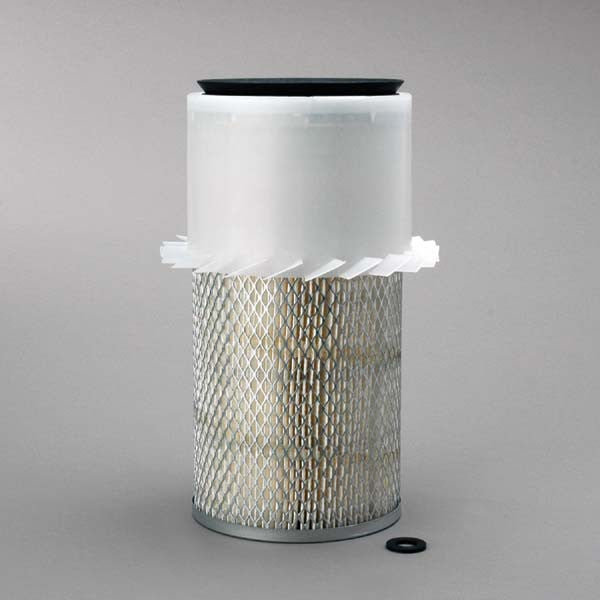

ED06009 | Air Maze | Intake Air Filter Element
***Image may vary***

ED06009 | Air Maze | OFS # 97-22-0512

  • $22.40


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 7.81 IN (198.37 MM)

Outer Diameter, Bottom: 6.09 IN (154.69 MM)

Inner Diameter, Top: 0.65 IN (16.51 MM)

Inner Diameter, Bottom: 3.50 IN (88.90 MM)

Length: 12.25 IN (311.15 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
