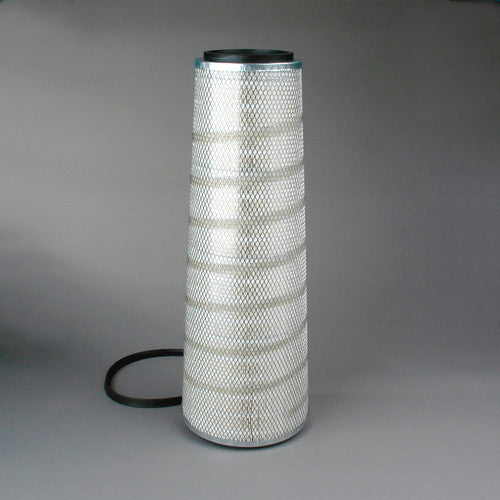

EBA112009 | DONALDSON | Intake Air Filter Element
***Image may vary***

EBA112009 | Donaldson | OFS # 97-22-1036

  • $92.03


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 10.40 IN (264.16 MM)

Outer Diameter, Bottom: 7.49 IN (190.25 MM)

Inner Diameter, Top: 6.95 IN (176.53 MM)

Inner Diameter, Bottom: 5.45 IN (138.43 MM)

Length: 28.90 IN (734.06 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 8.80 LB (3.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
