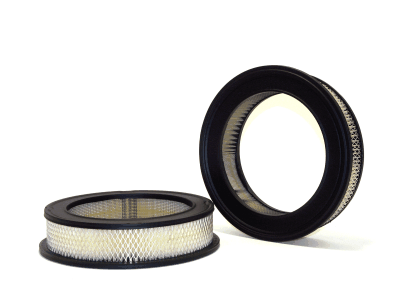

DT51 | WIX | Intake Air Filter Element | OFS # 97-15-1002
***Image may vary***

DT51 | WIX | OFS # 97-15-1002

  • $7.18


Lead Time: Usually Ships In 24-48 Hours


Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 10.39 IN (263.91 MM)

Outer Diameter, Bottom: 9.77 IN (248.16 MM)

Inner Diameter, Top: 7.29 IN (185.17 MM)

Inner Diameter, Bottom: 7.29 IN (185.17 MM)

Length: 2.38 IN (60.45 MM)

Thread:



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight:

Intake Air Filter Element
