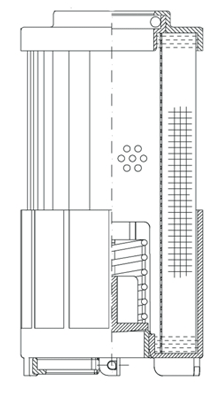

Digoma | DGMH2052 | Pleated Paper Element | OFS # 97-28-6659

PLEATED PAPER ELEMENT PLEASE CALL

Performance Data
Micron Rating:  10.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.31 IN   (58.67 MM)

Outer Diameter, Bottom:  2.31 IN   (58.67 MM)

Inner Diameter, Top:  1.11 IN   (28.19 MM)

Inner Diameter, Bottom:

Length:  7.85 IN   (199.39 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
