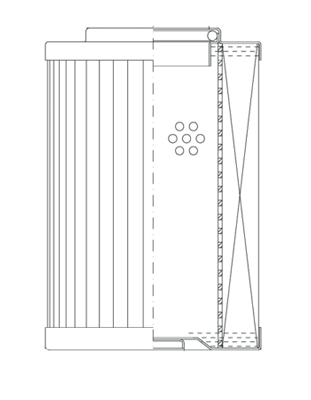

D79E25GAV | WIX | Pleated Micro-Glass Element | OFS # 97-05-0123
***Image may vary***

D79E25GAV | WIX | OFS # 97-05-0123

  • $90.84


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 25.00 ABSOLUTE

Beta Rating: B12=200

Collapse Pressure Rating:

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 3.70 IN (93.98 MM)

Outer Diameter, Bottom: 3.70 IN (93.98 MM)

Inner Diameter, Top: 1.87 IN (47.50 MM)

Inner Diameter, Bottom:

Length: 7.87 IN (199.90 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
